TT ? LAMPS AND JEWEL ASSEMBLIES
230
JACK PANELS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

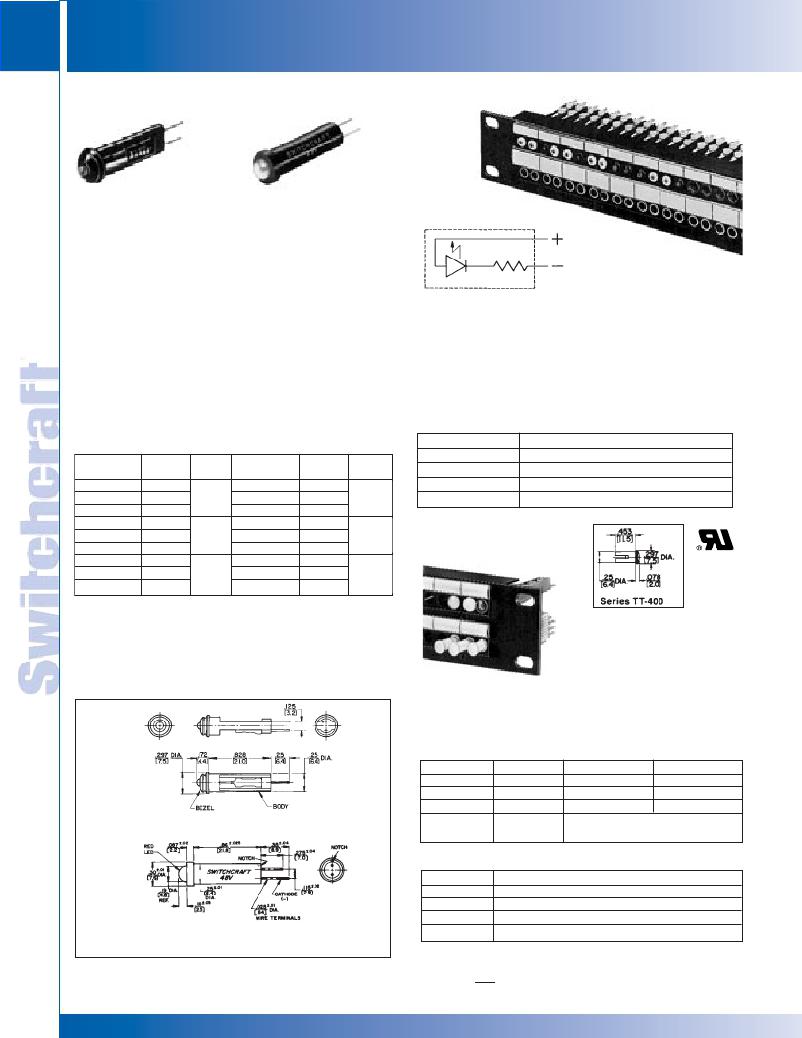

TT ? LAMPS AND JEWEL ASSEMBLIES
Steady “On” Lamp
Series TT450
Blinking/Steady
“On” Lamp
SCHEMATIC
SERIES TT-450 LAMPS
Red LED and series dropping resistor are molded into
compact cartridge with bi-pin terminals for use with TT
Lamp-Jax ? lamp jacks. Colored bezels are molded in for color
coding of functions; colors are black, red, green, white and
yellow. On special order, blue or other colors are available.
Standard voltages are 6, 24 and 48 V (DC only). No tools are
required for lamping/relamping. Simply slip TT-LED into lamp
jack with (+) terminal up. If it doesn’t light, remove it, rotate it
180°, and reinsert it into jack.
SPECIFICATIONS
Housing: Molded black plastic.
Bezel: Molded plastic in colors.
LED: Red illumination.
TT-LED Lamps
Installed
FLASHING/STEADY ON LEDS
Yellow, green and red LEDs are 2-pin cartridge plug-ins which
operate from a 48 VDC supply. When 48 V is applied, LED
flashes for 30 seconds, then changes to steady “On” condition.
SPECIFICATIONS
Body: Thermoplastic, UL 94V-0 rated.
LED Colors: Yellow, green or red.
Pins: T-1 3/4 bi-pin configuration.
Part Number
Description
Part
TT45106
Number
Bezel Part
TT45124 Color TT45224
Voltage TT45148 TT45206 Number Voltage
Bezel
Color
15J9068
15J9076
Red flashing/continuous
Yellow flashing/continuous
TT45248
TT45106
?
TT45306 TT45324 TT45348 TT45406
6
15J9077
Green flashing/continuous
TT45148
? TT45424
48
? TT45448
TT45406
TT45124
TT45548
Red
TT45424 TT45448 TT4506 TT45524
TT45806 TT45824 TT45848
24
48
Blue
15J9078
Amber flashing/continuous
TT45206
TT45224
6
24
Black
TT45506
TT45524
6
24
White
TT-JEWEL ASSEMBLY
TT45248
TT45306
48
6
TT45548
TT45806
48
6
TT45324
TT45348
24
48
Green
TT45824
TT45848
24
48
Yellow
ORDERING
1. Order by part number from table.
2. For special order items, such as other LED colors,
voltages, lamps with 25% reduced power consumption,
etc., contact Switchcraft.
Panel with TT-Jewel Assemblies
and TT-Switches installed
Jewel assemblies use bi-pin lamp and act as lighted jewel and
lamping/relamping tool. Simply slip bi-pin lamp in brass collar
and insert lamp with pins in vertical plane. Lamp automatically
seats properly. Jewel is molded plastic in colors; sleeve is brass.
Part Number
Color
Part Number Color
TT401
TT403
TT404
Red
Green
Blue
TT408
TT413
TT510
Yellow
Amber
Black*
Series TT-450 TT-LED Lamps
TT405
White
*Used as hole plug where
no jack is installed.
LAMPS
Part Number
P2290
P2315
P2316
Description
6.3 V, GE No. 7377.
6.3 V, GE No. 7381. Avg. life: 50K hrs. @ 200 mA.
28 V, GE No. 7387. Avg. life: 25K hrs. @ 40 mA.
Flashing/Steady “On” Lamps
P2456
24 V, GE No. 7001.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
